How to Dockerize your HashiCorp Vault set up with nginx reverse proxy

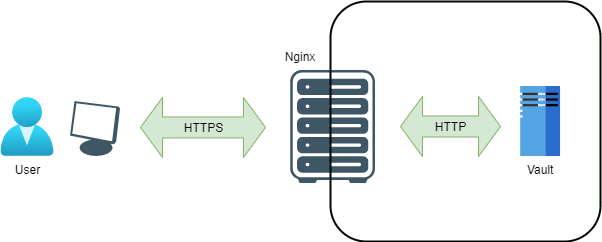

If you have Dockerized HashiCorp Vault, you might need to access it over the internet or from outside your internal network. The most common standard is to run your Vault set up behind the reverse proxy. Then of course you have to configure HTTPS connection.

I will not write details on the setup. I assume you are familar with docker/docker-compose.

Vault docker-compose file

version: '2'
services:
    myvault:
        image: vault
        container_name: myvault
        ports:
          - "8200:8200"
        volumes:
          - ./file:/vault/file:rw
          - ./config:/vault/config:rw
        cap_add:
          - IPC_LOCK
        entrypoint: vault server -config=/vault/config/vault.json
        networks:
          - your-docker-network
# Networks to be created to facilitate communication between containers
networks:
  your-docker-network:
    external:
      name: syour-docker-network-name

Here is my vault.json file

{
        "ui": true,
        "max_lease_ttl": "2160h",
        "default_lease_ttl": "2160h",
        "backend": [
                {
                        "file": {
                                "path": "/vault/file"
                        }
                }
        ],
        "listener": [
                {
                        "tcp": {
                                "address": "0.0.0.0:8200",
    "tls_disable":  "true",
    "proxy_protocol_behavior": "use_always"
                        }
                }
        ],
        "disable_mlock": true,
        "api_addr": "http://localhost:8200",
 "disable_clustering": true
}

Here is my nginx docker-compose file

version: '3'
services:
  nginx:
    image: nginx
    container_name: nginx
    restart: on-failure
    volumes:
      - ./conf:/etc/nginx/conf.d
      - /usr/local/certs:/etc/nginx/certs
    ports:
      - "80:80"
      - "443:443"
    networks:
        - your-docker-network
# Networks to be created to facilitate communication between containers
networks:
  your-docker-network:
    external:
      name:   your-docker-network-name

nginx.conf file (I have added inside current_path/conf directory)

upstream vault_backend {…
